CVBG stretching / Fiber Injection , posted by Manar Amer at Optical room about lasers and optics | detectors and electronics | software 7x

Message ID: 119 Entry time: Fri Jul 22 18:19:13 2022 Reply to this: 131

Author:	Manar Amer
Status:	Fixed
Type:	report
Category:	lasers and optics \| detectors and electronics \| software
Location:	Optical room
Title:	CVBG stretching / Fiber Injection

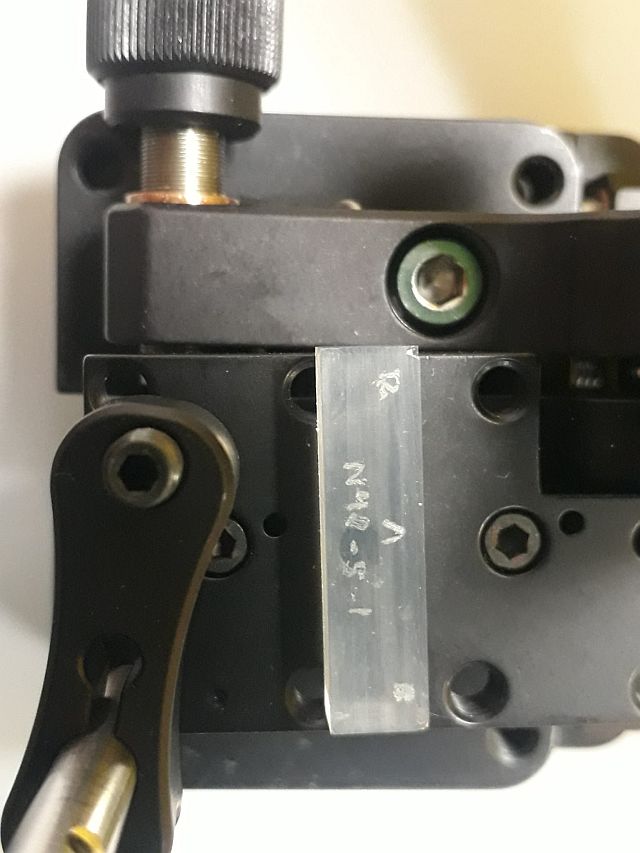

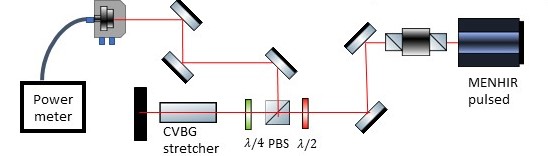

Before injecting into the amplifier, the pulse needs to be stretched using a CVBG, type attached.

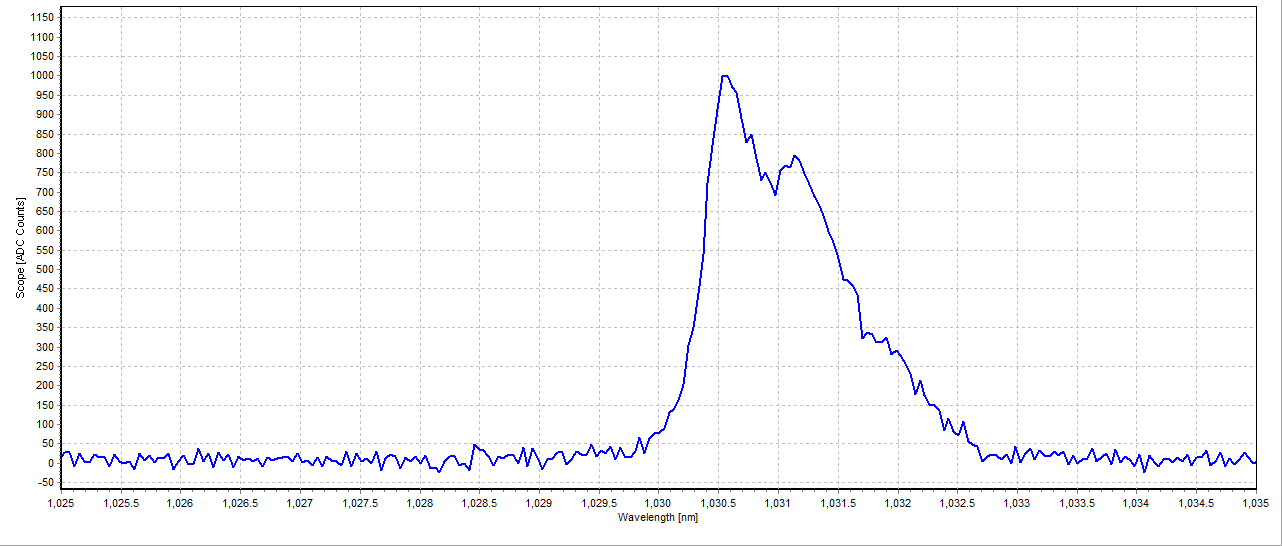

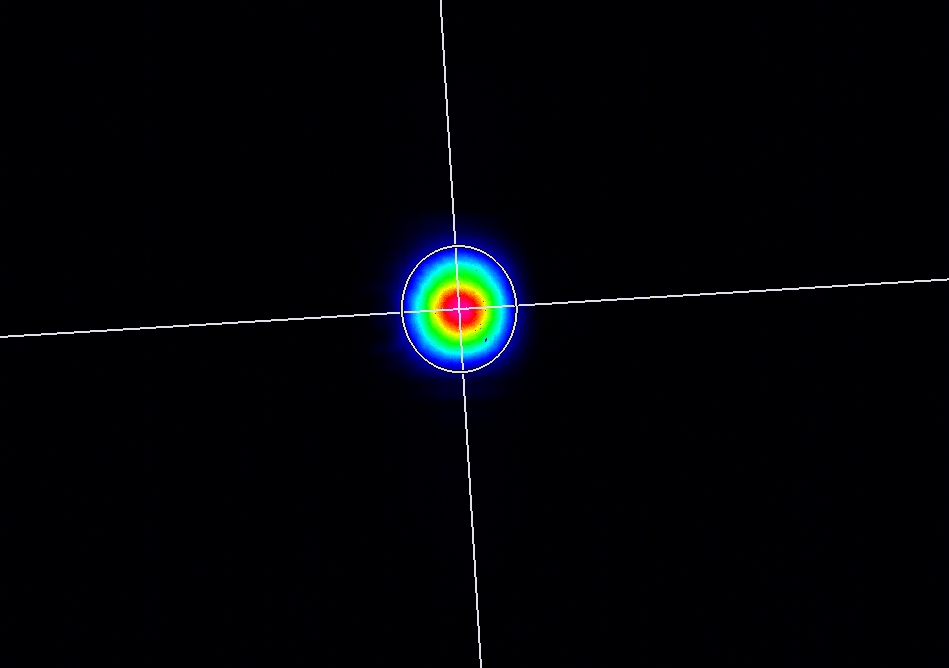

the CVBG is to be used at a small angle, the beam shape and spectrum after the PBS is attached.

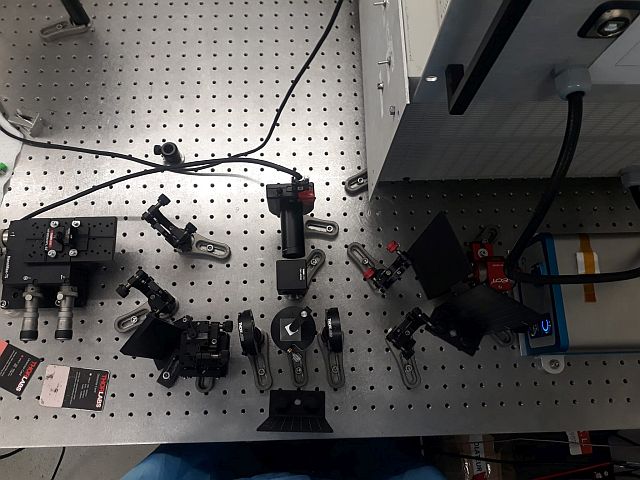

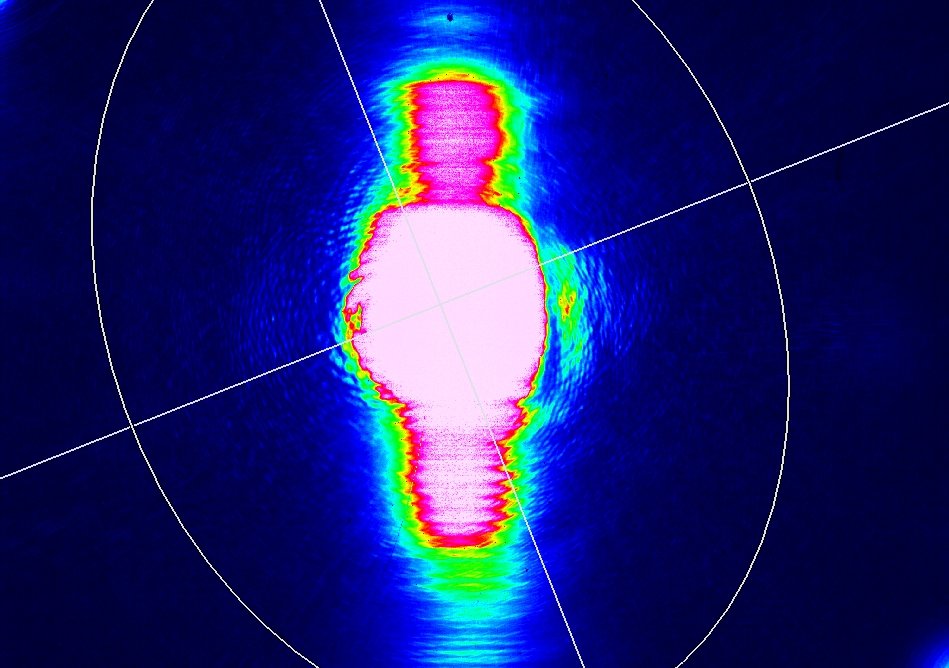

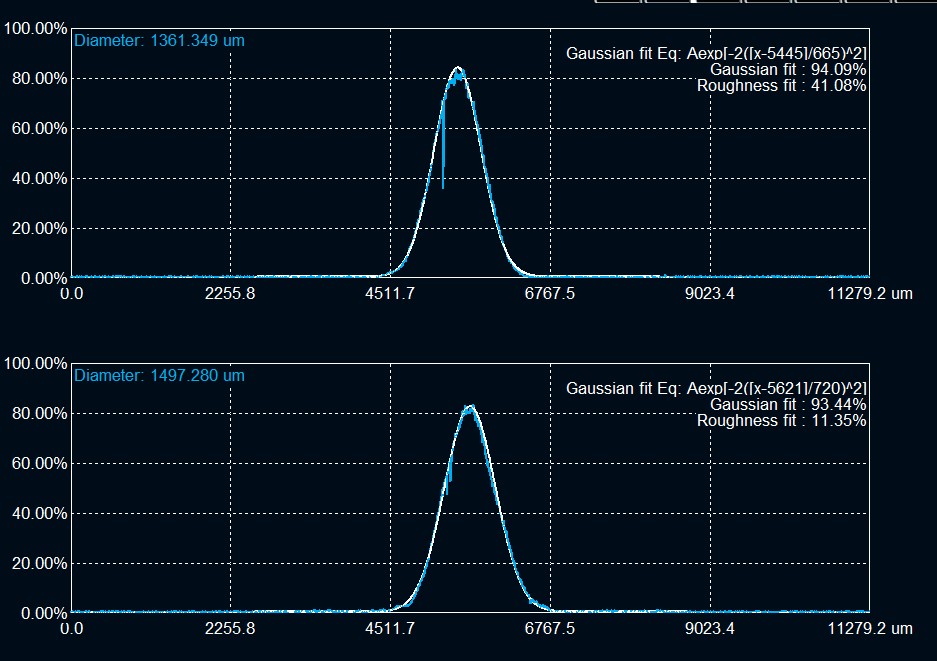

After measuring the beam profile, a mirror was placed to direct all the power for fiber injection

power before the fiber is 13 mW and the power injected is 6.19 mW

Attachment 1:

Attachment 2:

Attachment 3:

Attachment 4:

Attachment 5:

Attachment 6:

Attachment 7:
